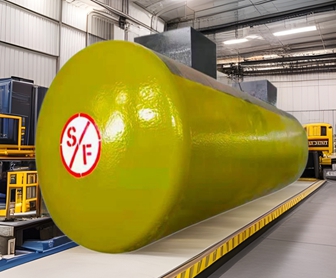

SF Buried Steel-Glass Fiber Reinforced Plastic Double Wall Underground Oil Tanks
SF Buried Steel-Glass Fiber Reinforced Plastic Double Wall Underground Oil Tanks.

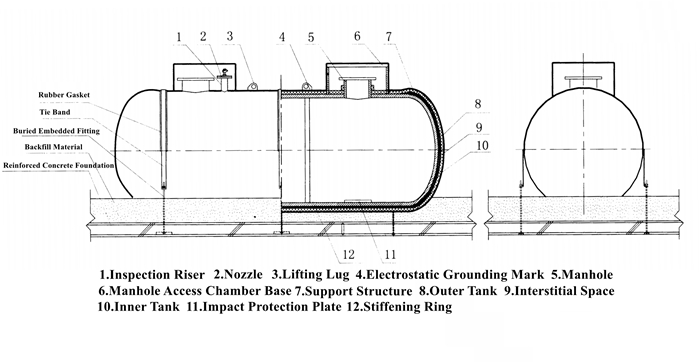

SF underground storage tank, full name Steel-Fiberglass Reinforced Plastic double-wall underground storage tank (S/F double-wall tank). S stands for Steel inner tank, F stands for FRP fiberglass outer shell. It is the mainstream underground anti-leakage oil storage equipment for gas stations and industrial oil depots.

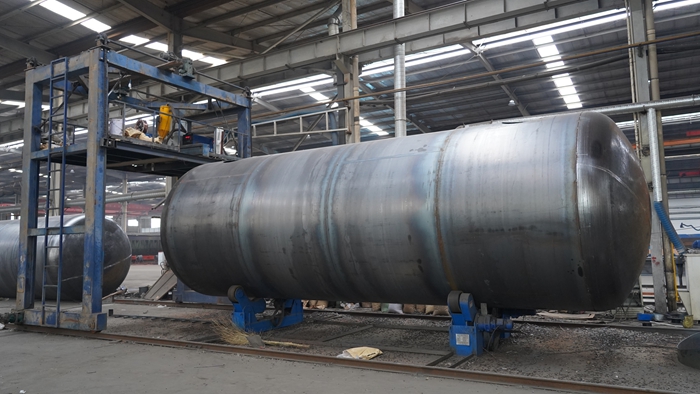

1. Inner layer: Q235B carbon steel tank body, holds oil products and provides structural strength.
2. Outer layer: Fiberglass reinforced plastic (FRP) impermeable outer jacket, resists electrochemical corrosion from soil and underground water.

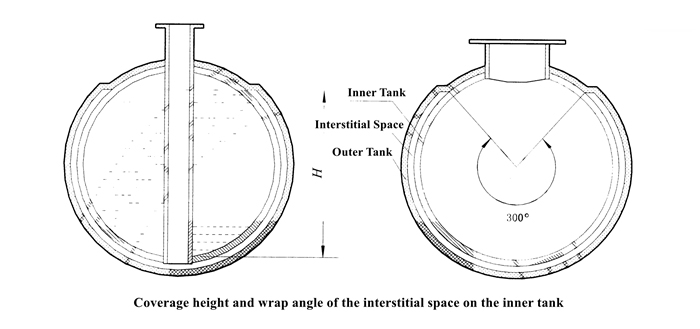

3. Interlayer: A continuous interstitial space exists between the steel inner tank and FRP outer tank. It can be connected to a leak monitoring system for 24-hour online leak detection. If leakage occurs in either the inner or outer tank, the fluid will flow into the interlayer and trigger an immediate alarm from the leak detector, preventing oil contamination of soil and groundwater.
- Q235B carbon steel inner tank
- FRP outer shell
- interstitial space
- 24h leak monitoring system
- atmospheric fuel storage tank
- corrosion resistant underground tank
- double-walled underground storage tank
- steel inner FRP outer underground tank
- interstitial leak detection tank
- fiberglass reinforced plastic outer jacket tank
- underground fuel storage tank
- anti-leak underground oil tank
- buried gasoline diesel storage tank
1. Dual anti-leakage safety: Double-layer protection. Compared with single-wall steel tanks, it reduces the risk of soil and groundwater pollution at the source.
2. Corrosion resistance & long service life: The FRP outer shell is resistant to soil corrosion, with a designed underground service life of over 30 years.
3. Easy installation: Horizontal direct burial, no need for anti-seepage concrete pools, shortening construction period.
4. Environmental compliance: Complies with Chinese standards GB50156, JC/T2286 and relevant European & American environmental standards for underground storage tanks. It is used for storing atmospheric liquid fuels such as gasoline, diesel and ethanol gasoline.
Underground fuel storage for gas stations, enterprise private fuel stations, dock and airport fuel supply systems, etc.
