Gas Cylinder Production Line Automatic Plastic Film Laminating Machine

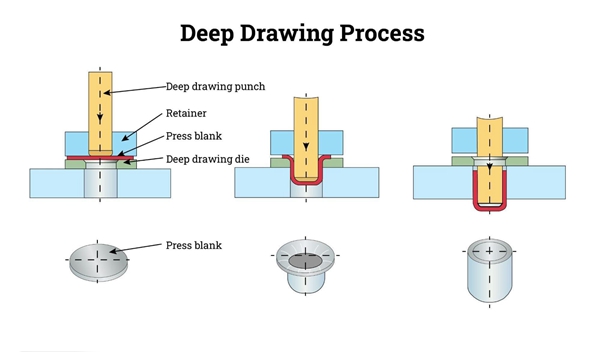

In the manufacturing process of liquefied petroleum gas (LPG) cylinders (typically steel welded gas cylinders), a crucial step involves drawing and bulging a pre-cut, specific-sized carbon steel blank using a hydraulic press within a mold. This forms the final cylindrical body with one open end, commonly referred to as the top and bottom heads.
The role of the automatic film laminating machine is to automatically, rapidly, and uniformly wrap this carbon steel blank with a protective film before it enters the drawing mold. This film is not part of the final product but is a process auxiliary material.
The primary purposes of film lamination are two-fold:
1. Preventing Surface Scratches and Drawing Marks:
The pre-cut carbon steel blanks used for the cylinder body may have a coating or treated surface with a certain degree of smoothness.
During the drawing process, intense friction and relative motion occur between the blank and the mold surface. Without this film, the hard mold would directly cause scratches, draw lines, and other defects on the blank's surface, severely impacting the product's appearance and quality, potentially even leading to the blank being scrapped.
2. Improving Material Flow and Lubrication:
The film itself possesses a certain lubricating effect.
It creates a barrier layer between the blank and the mold, reducing friction. This allows the carbon steel blank material to flow more uniformly and smoothly during drawing, filling all corners of the mold. Consequently, it helps form a cylinder with an accurate shape and uniform wall thickness, while also reducing the risk of tearing or rupture during drawing.
The workflow of the automatic film laminating machine is as follows:
Suction Clamping: The blank is precisely gripped by suction by a robotic manipulator with a drive mechanism.
Loading: The transfer device/robotic manipulator automatically picks up the blank to be drawn and transports it to the laminating station of the hydraulic press.
Laminating: The automatic laminating machine pulls a pre-determined length of protective film (usually plastic film like PE or PET) from its internal roll, aligns it with the blank delivered by the manipulator, and quickly wraps it around the blank. A cutter automatically severs the film.
Transfer Out: The now laminated blank is transferred via conveyor to the next process step: the drawing operation. The entire process typically takes only a few seconds, is fully automated, and is synchronized with the cycle time of the drawing press.
What is an automatic film laminating & feeding machine for LPG cylinder manufacturing?
In the manufacturing process of liquefied petroleum gas (LPG) cylinders (generally steel welded gas cylinders), a key step involves stretching and bulging a cut carbon steel disc of specified dimensions in a die using a hydraulic press, forming an open-ended cylindrical body, commonly referred to as the upper head and lower head,also called domes or halves.
This machine is known as an automatic film laminating & feeding machine for LPG cylinder manufacturing. Its function is to automatically, rapidly and evenly coat the carbon steel disc with a protective plastic film before the disc enters the die of the stretching machine. This plastic film is not part of the final product, but an auxiliary material for the production process.
What are the main purposes of the automatic film laminating & feeding machine for LPG cylinder manufacturing?
1. Prevent surface scratches and strains
The surface of the cut carbon steel discs sheet metal used for cylinder manufacturing may already be coated and treated with a certain smoothness. During the stretching process, severe friction and relative movement occur between the steel disc and the die surface. Without the protective film, the hard die would directly leave scratches, drawing marks and other defects on the disc surface, seriously affecting the appearance and quality of the product, and even causing the disc to be rejected.
2. Improve material flowability and increase lubricity
The plastic film itself provides a lubricating effect. It forms an isolation layer between the carbon steel disc sheet metal and the die, reducing friction. This allows the material to flow more evenly and smoothly during stretching, fully filling all parts of the die cavity. As a result, the cylinder body is formed with accurate dimensions and uniform wall thickness, while reducing the risk of cracking during stretching.
3. Enhance forming quality, reduce risks of cracking and wrinkling
With more uniform material flow, the one‑time forming success rate is significantly improved.
4. Extend die service life
By reducing direct contact between the die and the discs sheet metal, die wear is effectively decreased.
What are the working processes of the automatic film laminating & feeding machine for LPG cylinder manufacturing?
1. Suction
The carbon steel disc is precisely adsorbed by a manipulator equipped with a conveying device.
2. Feeding
The manipulator of the conveying device automatically sends the adsorbed carbon steel disc to be stretched to the film laminating station of the hydraulic stretching machine.
3. Film laminating
The automatic film laminating machine pulls out a preset length of protective film (usually PE, PET or other plastic films) from its built-in reel, aligns it with the disc conveyed by the manipulator, and quickly wraps it onto the disc. A cutter automatically cuts the film.
The film-wrapped disc then enters the conveyor belt for the next stretching process.
The whole process usually takes only a few seconds, is fully automatic, and matches the cycle rhythm of the stretching machine.

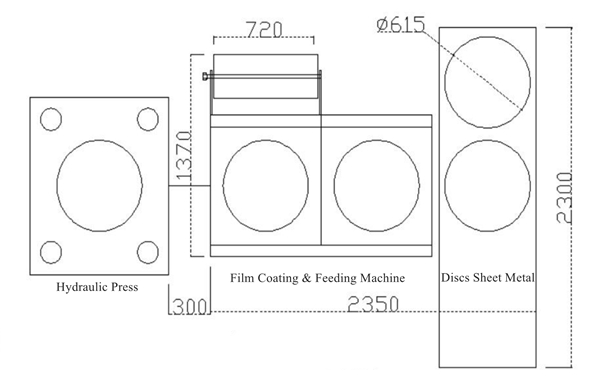

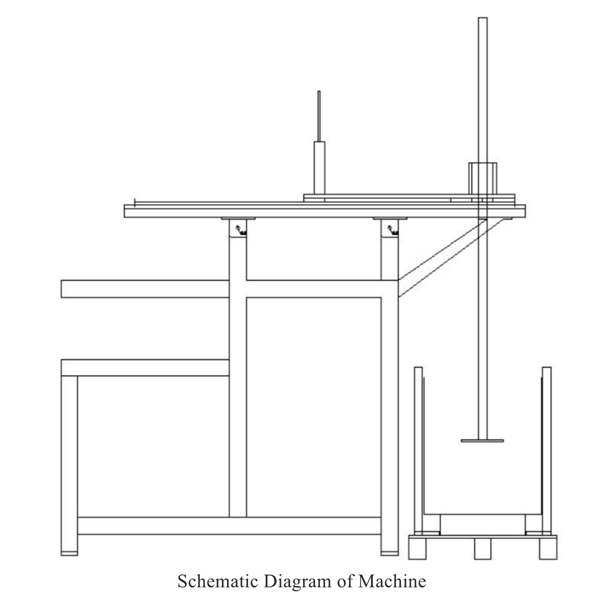

An automatic film laminating & feeding machine generally consists of the following parts:
1. Frame and control system
Usually adopts PLC control to ensure accurate and reliable operation.
2. Workpiece clamping and conveying system
Used for adsorbing, fixing and conveying the steel discs.
3. Film unwinding and tension control mechanism
Ensures stable tension during film wrapping, preventing breakage from excessive tightness or wrinkling from insufficient tension.
4. Film laminating head assembly
Including pressure rollers, guide rollers, etc., to ensure the film is smoothly and tightly attached.
5. Film cutting device
Cuts the plastic film quickly and neatly.
What are the advantages of the automatic film laminating & feeding machine for LPG cylinder manufacturing?
Compared with manual film covering used in earlier stages, the automatic film laminating machine offers significant advantages.
1. High efficiency
Its speed is much faster than manual operation, meeting the requirements of modern high-speed production lines.
2. High quality
It provides uniform and wrinkle-free film covering, stably ensuring the surface quality of cylinders and greatly reducing the reject rate.
3. Low cost
It saves labor and uses film with high precision, reducing material waste.
4. Automated integration
It can be easily integrated into automated production lines to realize unmanned operation.
A gas cylinder production line automatic film laminating machine typically consists of:
Frame and Control System: Usually PLC-controlled to ensure precise and reliable movements.
Workpiece Clamping and Conveying System: Used to secure and transport the blanks.
Film Unwinding and Tension Control Mechanism: Ensures stable film tension during the wrapping process, preventing over-tightening breakage or loose, wrinkled film.
Laminating Head Assembly: Includes pressure rollers, guide rollers, etc., to ensure the film is applied flat and adheres smoothly.
Film Cutting Device: Cuts the film quickly and cleanly.
Advantages of the Gas Cylinder Production Line Automatic Plastic Film Laminating Machine
Compared to earlier methods like manual film application, the automatic film laminating machine offers significant advantages:
High Efficiency: Speed is far greater than manual operation, meeting the demands of modern high-speed production lines.
High Quality: Ensures uniform, wrinkle-free film application, guaranteeing consistent cylinder body surface quality and significantly reducing the scrap rate.
Low Cost: Saves labor costs, and with precise film usage, reduces material waste.
Automation Integration: Easily integrated into automated production lines, enabling unmanned operation.
