Lincoln Welding Machine OPTIMARC CV 505P

Lincoln Welding Machine OPTIMARC CV 505P:
Pulse MIG/MAG Welding, MIG/MAG Welding, Flux Cored Gas Shielded Welding
Product Model: OPTIMARC*CV 505P
Product No.:K60139-2
Input: 380V-415V(-/+10%) 3/50 or 60Hz
Rated Output Current/Temporary Load Rate:
500A/39V/60%
390A/33.5V/100%
Input Power at Rated Output:23@60%
Input Range: 16-39V 50-500 A
Dimension:H540xW340xL800mm
Net Weight:47kg

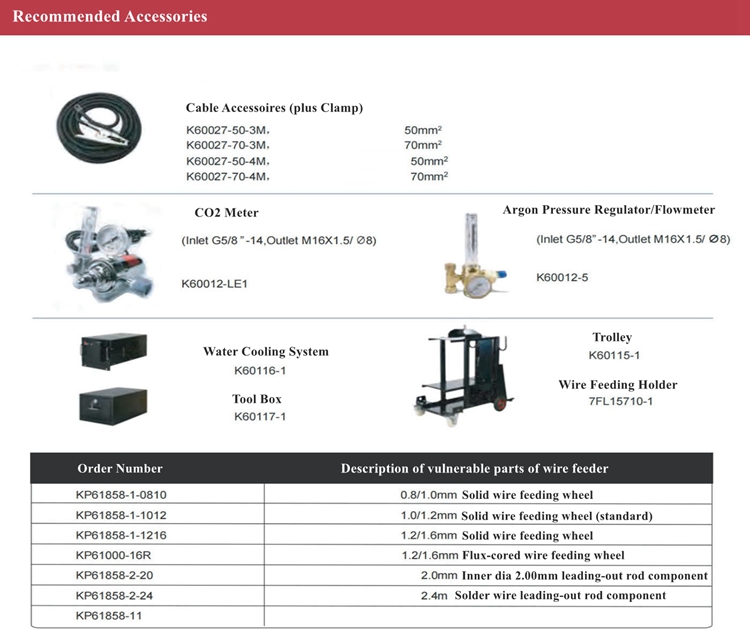

Water Cooling System:
K60139-2:OPTIMARC CV 505P Welding Power Source

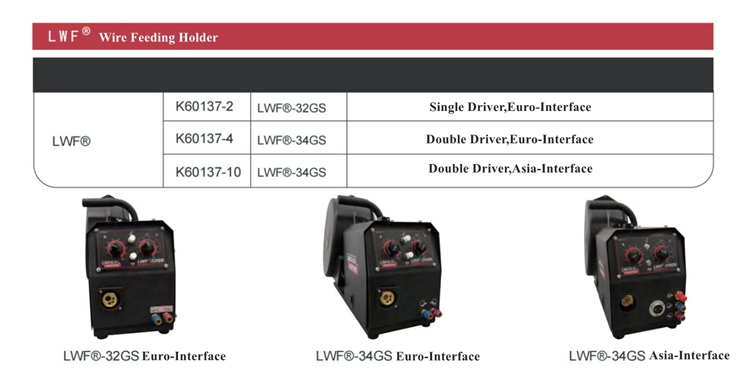

K60137-2/-4:LWF-32GS/34GS Wire Feeder

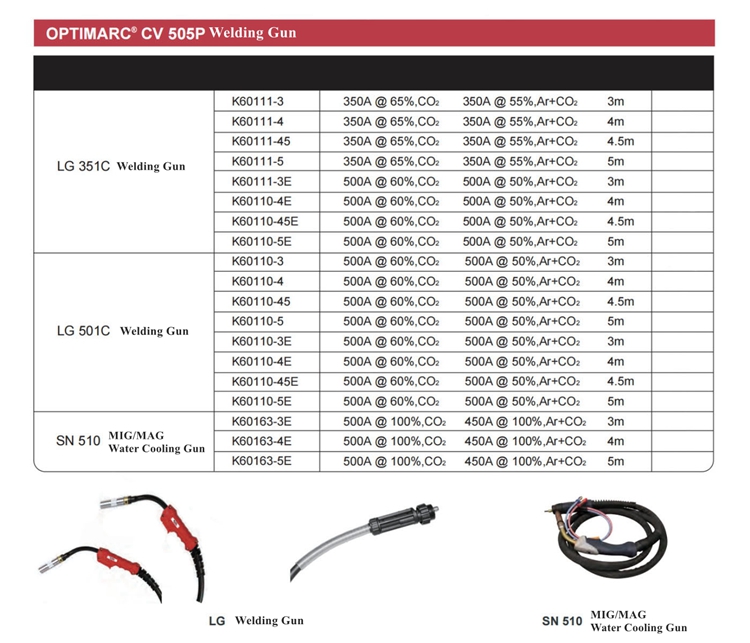

K60163-3E:SN 510 Water Cooling, Gas Shielded Welding Gun, Euro Style, 3 Meters
K60027-70-3M:Ground Wire (Including Ground Wire Clamp), 70SQ MM, 3 Meters

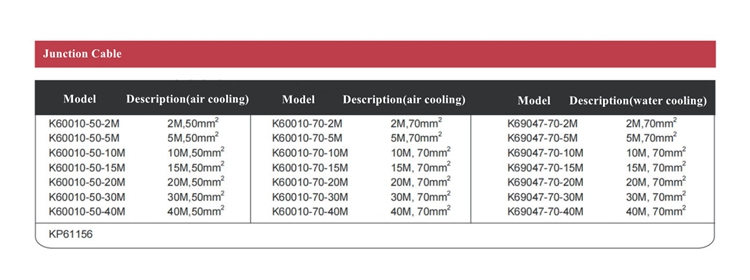

K69047-70-5M:Relay Wire (Including Cables, Control Lines, Gas Pipes, Water Pipes) 70SQ MM, 5 Meters
K60012-LE1:CO2 Heating Meter(36VAC/6A)
K60115-1:Welding Trolley
K60116-1:Water Cooling Tank

7FL15710-1:Wire Feeder Holder

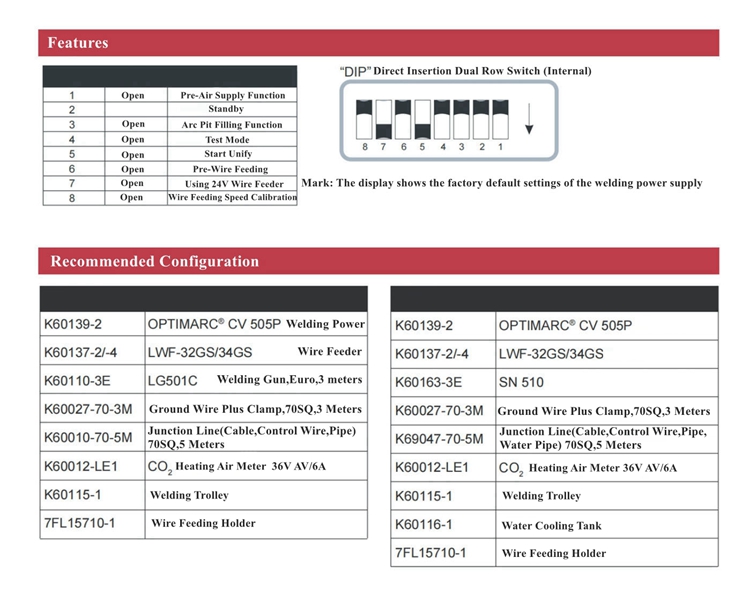

Features:
1.Arc Pit Filling Function
2.Wire Feeding Speed Calibration
3.Direct Insertion Dual Row Switch(Internal)
4.Pulse MIG/MAG CO_2 Gas Flux-cored Solder Wires Shield Welding
5.Euro/Asia Style Interface

Lincoln Welding Machine OPTIMARC CV 505P Specification:
Pulse MIG/MAG Welding, MIG/MAG Welding, Flux Cored Gas Shielded Welding
Product Model: OPTIMARC*CV 505P
Product No.:K60139-2
Input: 380V-415V(-/+10%) 3/50 or 60Hz
Rated Output Current/Temporary Load Rate:
500A/39V/60%
390A/33.5V/100%
Input Power at Rated Output:23@60%
Input Range: 16-39V 50-500 A
Dimension:H540xW340xL800mm
Net Weight:47kg

ISO Standard
