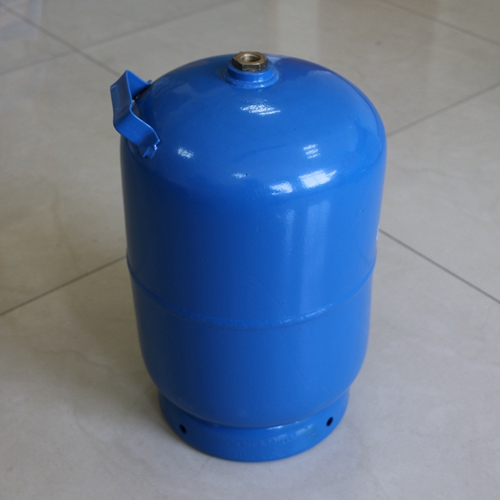

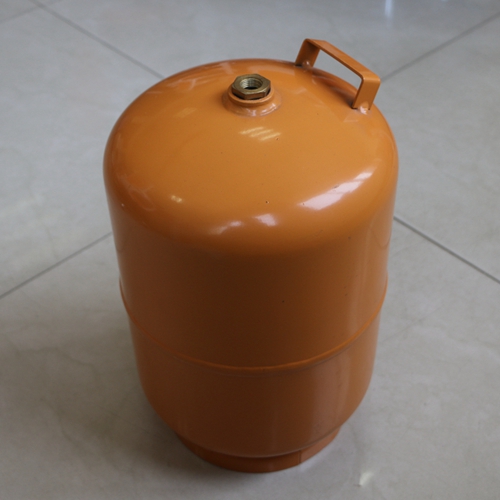

5KG Gas Cylinder Fitted Comping Valve
Product Description:

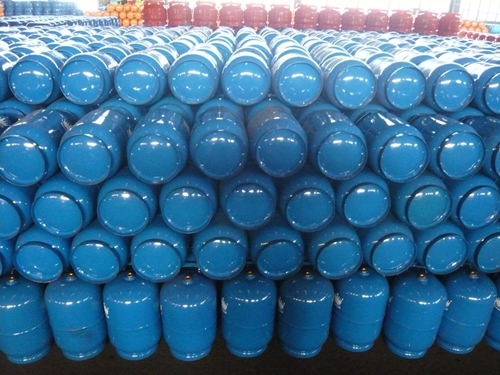

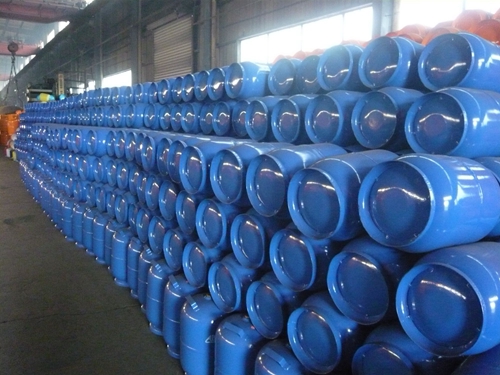

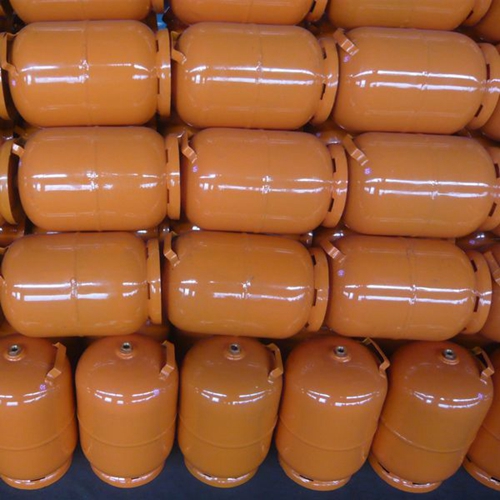

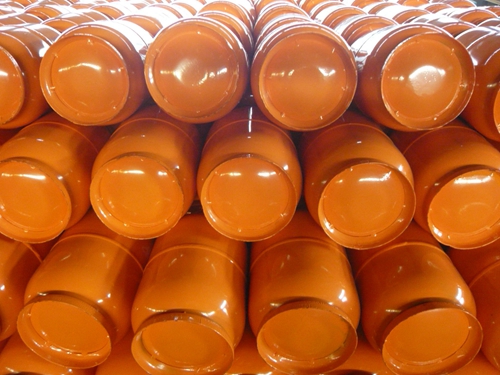

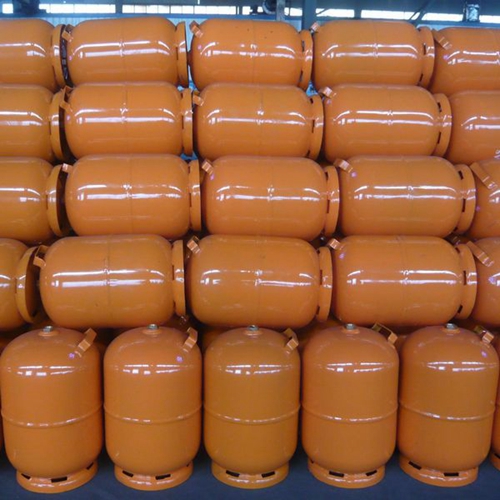

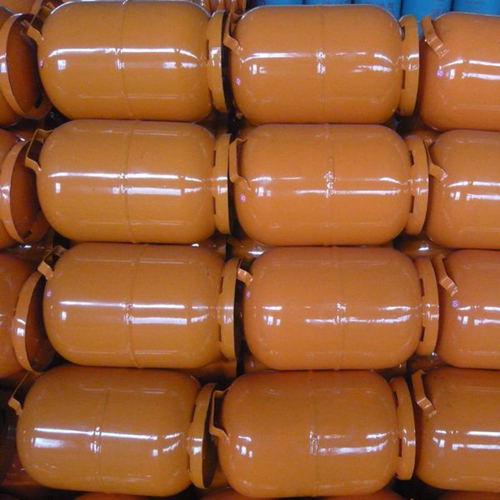

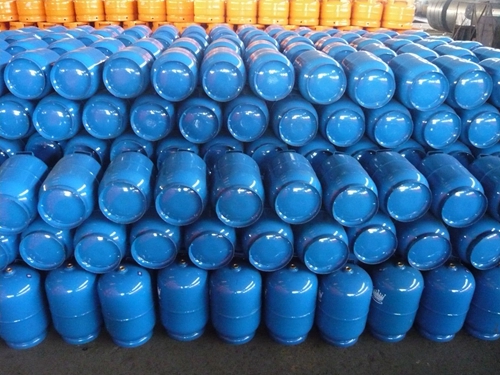

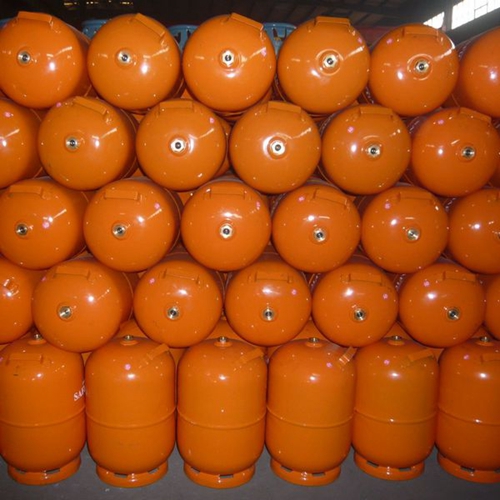

This is the size used for home gas bottle product range,it is popular in Nigeria market,3968pcs per 40HQ container,it is also used with our LCL less than container loading delivery service. LPG gas cylinder sizes shown are approximate,actual dimensions may vary,the product color can be blue, orange and red, as well as the colors you want.
5KG LPG Gas Cylinder Product Specifications:
Gas Type:LPG
Feature:Leak proof
Water capacity:≥12L
Total height:295-/+5 mm
Internal diameter: 249 -/+2mm
Outside diameter of footring:200-/+2 mm
Footring height:35-/+2 mm
Outside diameter of collar:Non
Shroud height:Non
Min. wall thickness:2.3 mm
Steel material:HP295
Test pressure:2.5 MPa
Work pressure:1.5 MPa
Construction:Two-piece type
Design standard:EN 1442,ISO4706
Safety features:
ISO 4706 approval for cylinder
Approved by Government of China's explosives department
Periodic testing of cylinders
Mention of tare weight on cylinder
Mention of Batch and Serial Number
Safety features:
♦ ISO 4706 approval for Cylinder
♦ Approved by Government of China's Explosives department
♦ Periodic testing of Cylinders
♦ Mention of tare weight on Cylinder
♦ Mention of Batch and Serial Noumber
Total height:295-/+5 mm
Internal diameter: 249 -/+2mm
Outside diameter of footring:200-/+2 mm
Footring height:35-/+2 mm
Outside diameter of collar:Non
Shroud height:Non
Min. wall thickness:2.3 mm
Steel material:HP295
Test pressure:2.5 MPa
Work pressure:1.5 MPa
Construction:Two-piece type
Design standard:EN 1442,ISO4706
Scope of approval:
Production and sales of liquefied petroleum gas steel cylinders (Class B2) within the licensed scope
