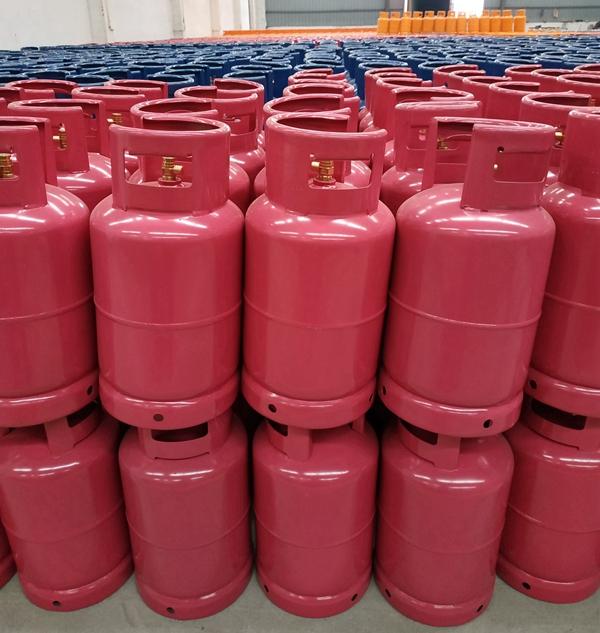

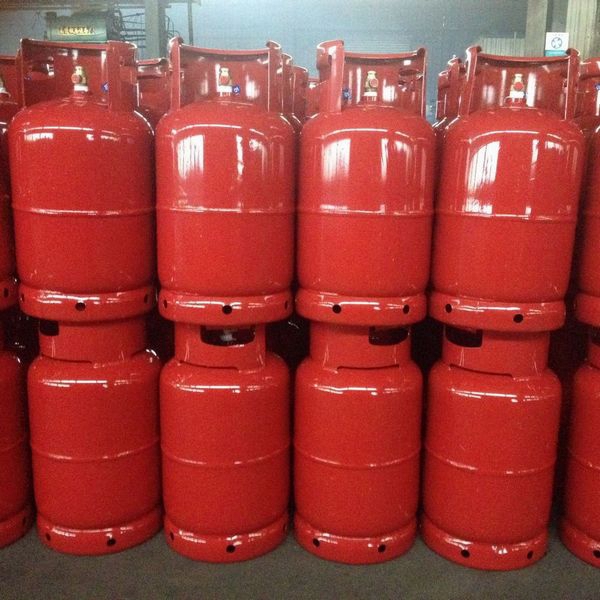

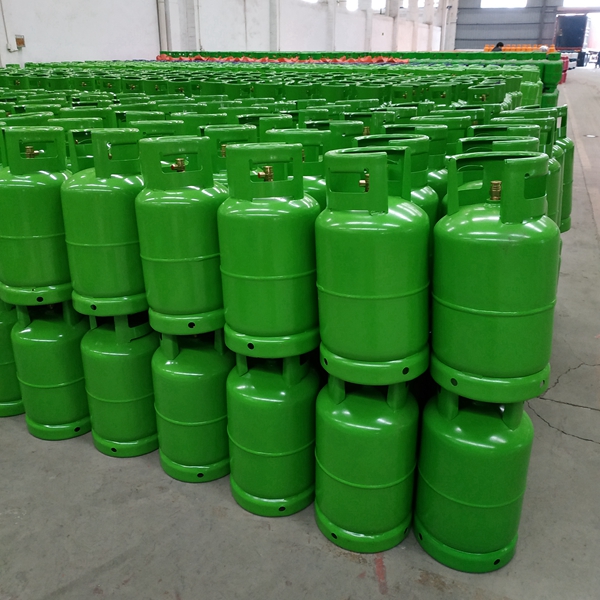

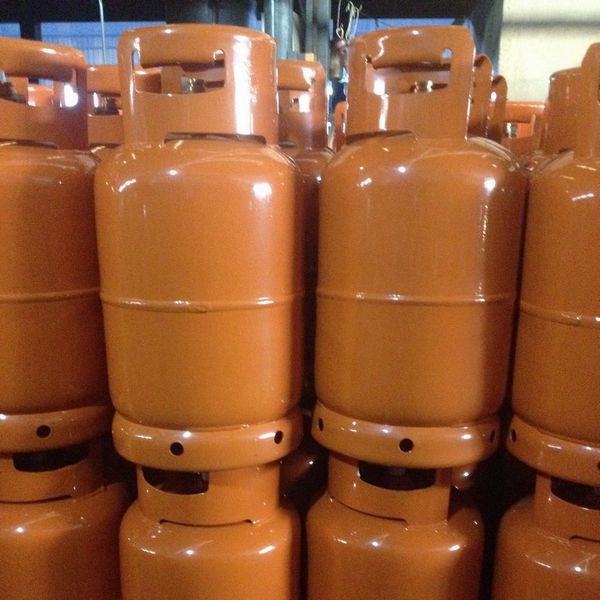

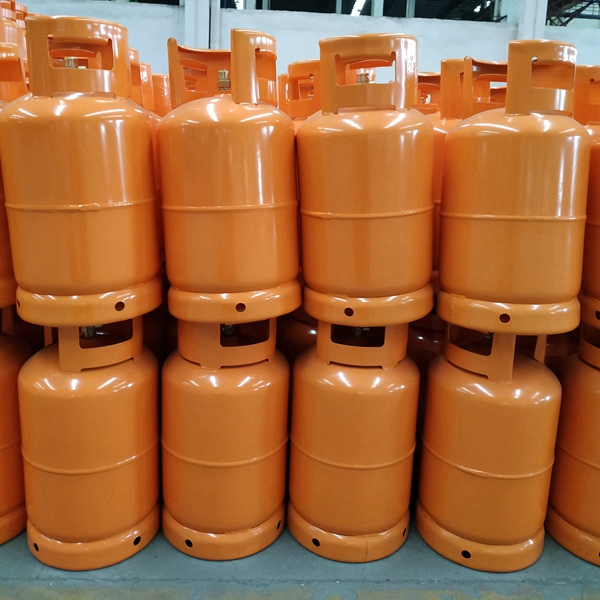

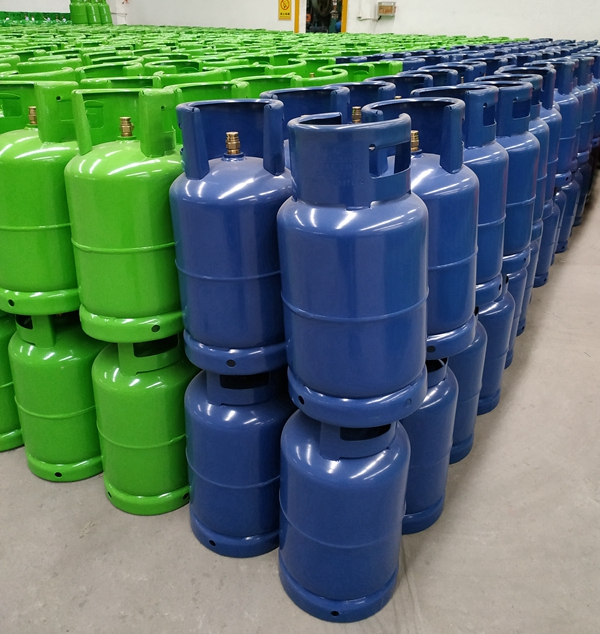

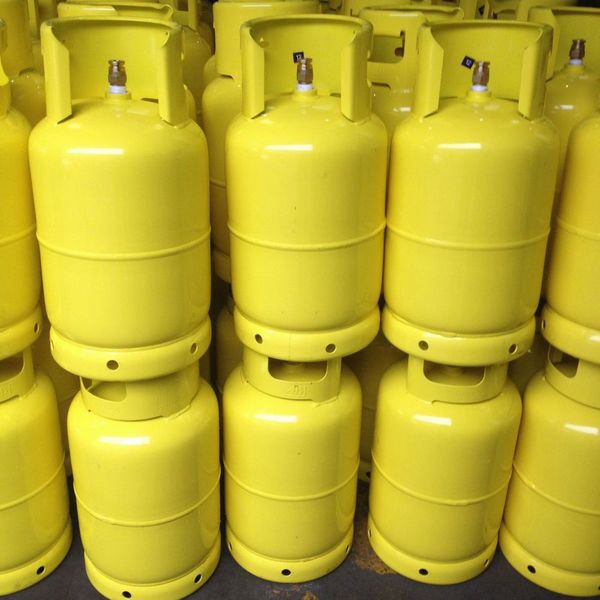

12.5KG LPG Gas Cylinder Fitted with F-Type Valve

This is the size used for our Home Gas Bottle Product Range. They are also used with our LCL less than container loading Delivery Service. Lpg Gas cylinder sizes shown are approximate,actual dimensions may vary.

12.5KG LPG Gas Cylinder Fitted with F-Type Valve

Product details:

∗ Capacity:12.5 Kg
∗ Water capacity:26.2 Liters
∗ Total height:575 mm
∗ Inside diameter of cylinder:294 mm
∗ Outside diameter of footring:300 mm
∗ Outside diameter of collar:230 mm
∗ Foot ring height:60 mm
∗ Shroud height:143 mm
∗ Norminal wall thickness:2.75 mm
∗ Steel material:HP295
∗ Test pressure:3.2 MPa
∗ Work pressure:2.1 MPa

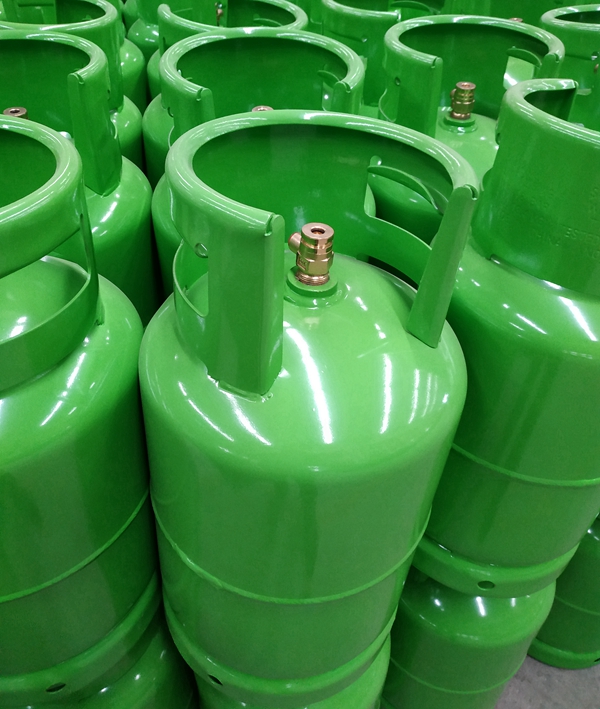

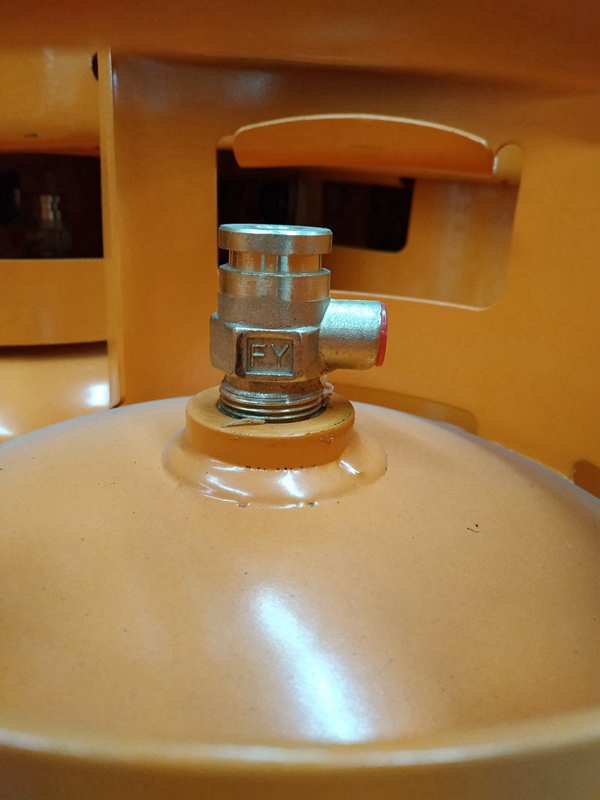

∗ LPG Cylinder Fitted with F-type Valve
∗ Design Specification:EN 1442,ISO4706
∗ Construction:Two-piece
∗ Minimum Order Quantity:1470 Pieces

Safety features:

12.5KG LPG Gas Cylinder Fitted with F-Type Valve

♦ ISO 4706 approval for Cylinder
♦ Approved by Government of China's Explosives department
♦ Periodic testing of Cylinders
♦ Mention of tare weight on Cylinder
♦ Mention of Batch and Serial Number

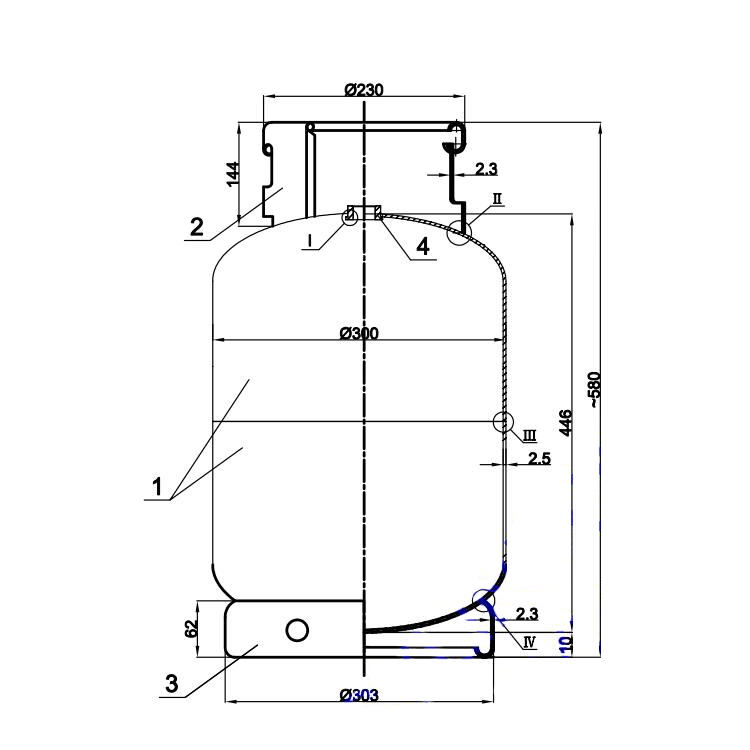

Product details:

∗ Capacity:12.5 Kg
∗ Water capacity: 26.2 Liters
∗ Total height: 580 mm
∗ Internal diameter of cylinder: 294 mm
∗ External diameter of footring: 300 mm
∗ Diameter of collar: 230 mm
∗ Foot ring height: 62 mm
∗ Collar height: 144 mm
∗ Norminal wall thickness:2.5 mm
∗ Steel material:HP295
∗ Test pressure:3.2 MPa
∗ Work pressure:2.1 MPa
∗ LPG Cylinder Fitted with F-type Valve
∗ Design Specification:EN 1442,ISO4706
∗ Construction:Two-piece

The established MS conforms to:GB/T 19001-2016/ISO 9001:2015
Scope of approval:
Production and sales of liquefied petroleum gas steel cylinders (Class B2) within the licensed scope
