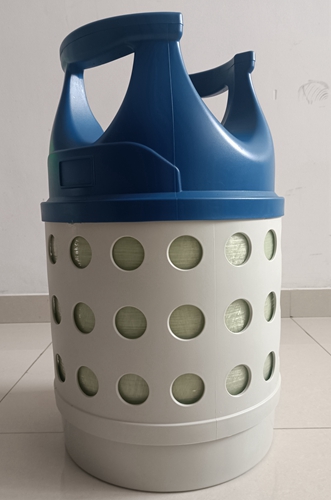

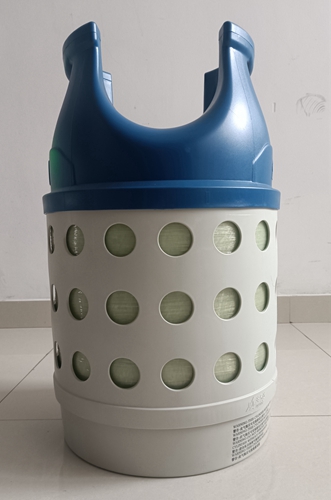

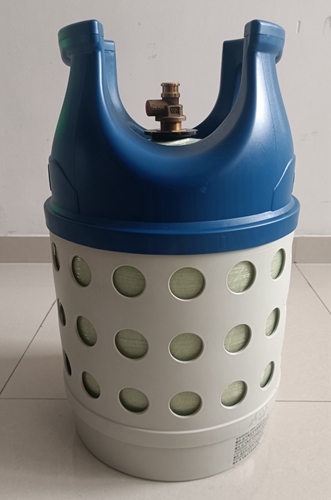

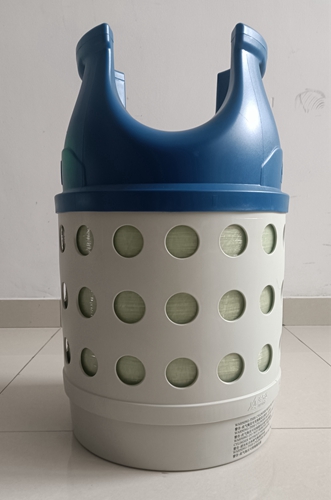

Portable New Material Hdpe Wrapped Fiberglass Composite Plastic Lpg Gas Cylinder

18.2 Water Capacity Filing Weight 7.5KG Portable New Material Hdpe Wrapped Fiberglass Composite Plastic Lpg Gas Cylinder
Share:
Portable New Material Hdpe Wrapped Fiberglass Composite Plastic Lpg Gas Cylinder

18.2 Water Capacity Filing Weight 7.5KG Portable New Material Hdpe Wrapped Fiberglass Composite Plastic Lpg Gas Cylinder
Benefits of composite LPG cylinders:
* Light Weight
* Transportation costs will be lowered due to the reduced weight.
* An even tare weight removes the need to adjust the filling machines for each cylinder,thereby saving man hours.
* Explosion safe
* Explosion-proof under fire exposure and impact load
* Corrosion free and ultra-violet radiation proof
* Transparency
* Hight quality
The ultimate goal is to produce a high quality,"safety first" factory and products that are approved by international government agencies for containment and transportation of LPG.


Technology data:

* Overall height: 499 mm
* Water capacity:18.2L
* Diameter:307 mm
* Gross weight: 4.5 kg
* Inner liner material: HDPE
* Outer shell material: Fibre glass composite
* Production standard: T/CATSI 02 005-2019
* Pressure: Ph 3.2Mpa
* Burst pressure: Pb 15Mpa
* Working pressure: Pw 2.1Mpa
* Valve thread: G3/4
* Valve torque: 80-120Nm
* Life: 12 Years at least
* Inspection period: 4 Years
* Valve standard: T/CATSI 02 005-2019
* In spection standard: T/CATSI 02 005-2019



Portable light weight new material HDPE wrapped fiberglass composite plastic LPG gas cylinder

Features of composite LPG cylinder :
1.Light weight & portable,50% lighter than steel cylinder
2.Unique hollow out design
3.Visible liquied level
4.Beautifully design
5.Rust-free and corrosion resistance
6.Easy-to-clean
7.It will not explode even during burning
8.Long life 15 years and high safety
9.Can be used in any application,easy to operation
10.The appearance color will always maintain
