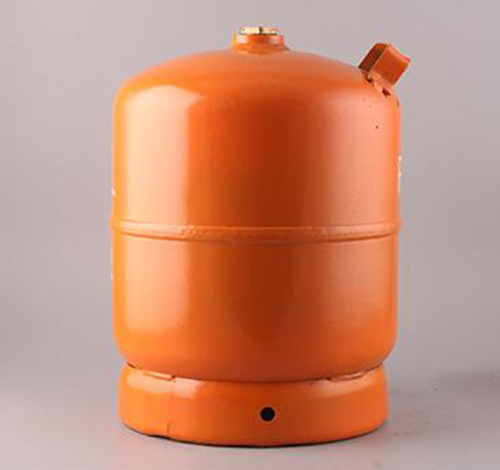

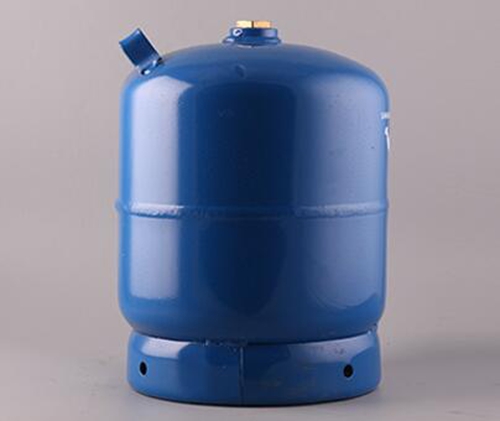

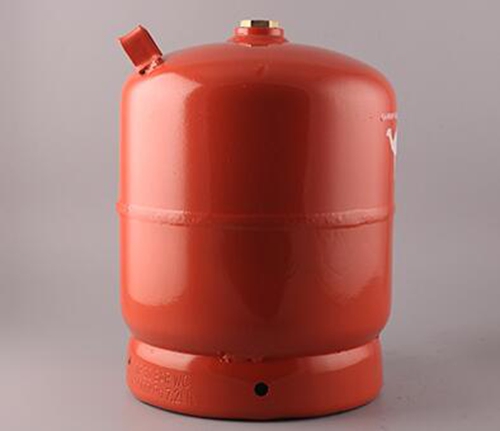

3 KG Gas Cylinder
This is the size used for camping and house cooking range,two types one with collar the other one without collar.
They are also used with our LCL less than container loading delivery service.
3kg lpg gas cylinder sizes shown are approximate,actual dimensions may vary.
3kg camping gas cylinder for storage & transportation of propane,butane or their mixtures having dimensions as the following:
1.The cylinders are constructed & tested according to ISO4706 and EN1442 standard for steel cylinders.
2.Water capacity 6 liters min.
3.Outer diameter 198mm
4.Working temperature -40/+60 C
5.Hydrostatic test pressure 2.5MPa
6.Hydraulic test presure 1.5MPa
7.Material HP295
8.Thickness 2.3mm Min
9.Nominal thickness body 2.5mm
Safety features:
ISO 4706 approval for Cylinder
Approved by Government of China's Explosives department
Periodic testing of Cylinders
Mention of tare weight on Cylinder
Mention of Batch and Serial No
Gas type:liquefied petroleum gas
Water capacity:≥6.0L
Total height:235 mm
Inside diameter of cylinder:195 mm
Cylinder body height:220 mm
Outside diameter of footring:190 mm
Base height:26 mm
Min. wall thickness:2.3 mm
Steel material:HP295
Test pressure:2.5 MPa
Work pressure:1.5 MPa
Construction:Two-piece
